TeraStation™ 5010 Series - Desktop - Internal


High Performance Scalable Storage solution - Hard Drives Included



TeraStation 5010 Desktop is a high performing Network Attached Storage solution with NAS-grade hard drives included; ideal for Large business files, graphics, video (Auto CAD, etc.), cloud integration, iSCSI virtualization target (VMware Certified).



Users can easily share and safeguard data with reliability and RAID data protection, while the powerful quad-core Annapurna processor provides high performance operation. For professionals looking to speed up their transfer rates, this device comes with a native 10GbE port and brings you faster than ever experience.

Click here for Rackmount Lineup


Click to check price Click to contact sales



Overview

Highlights


  • Pre-tested NAS grade Hard drives included with RAID pre-configured

  • 3 years warranty with 24/7 North American-based support

  • Save time and resources by accessing these devices from a single console with Buffalo’s free Remote Management Service

  • Variety of backup solutions:  Hybrid Cloud Backup / Private Cloud Backup / iSCSI backup target (VMware® certified) / Rsync Backup

  • Native 10GbE port / 4GB ECC memory / Metal chassis / Internal power / LCD

  • Integrated cloud backup with Dropbox, Dropbox Business, Amazon S3, Microsoft™ Azure and Microsoft OneDrive

  • Includes NovaBACKUP software license(s) for professional-level server and PC backups

  • Partially populated option available with 4 & 8 bay model for your future scalability

  • LCD display allows easy visibility to the current unit status

  • Optimized performance for SMB 30 - 100 concurrent users

  • 256 bit AES encryption (more about our TeraStation security features)

  • Partially Populated options available

  • Made in Japan / TAA Compliant

  • Works with Buffalo remote monitoring software (Network QuickView by Buffalo) and also compatible to 3rd party software (Monitor Resources)

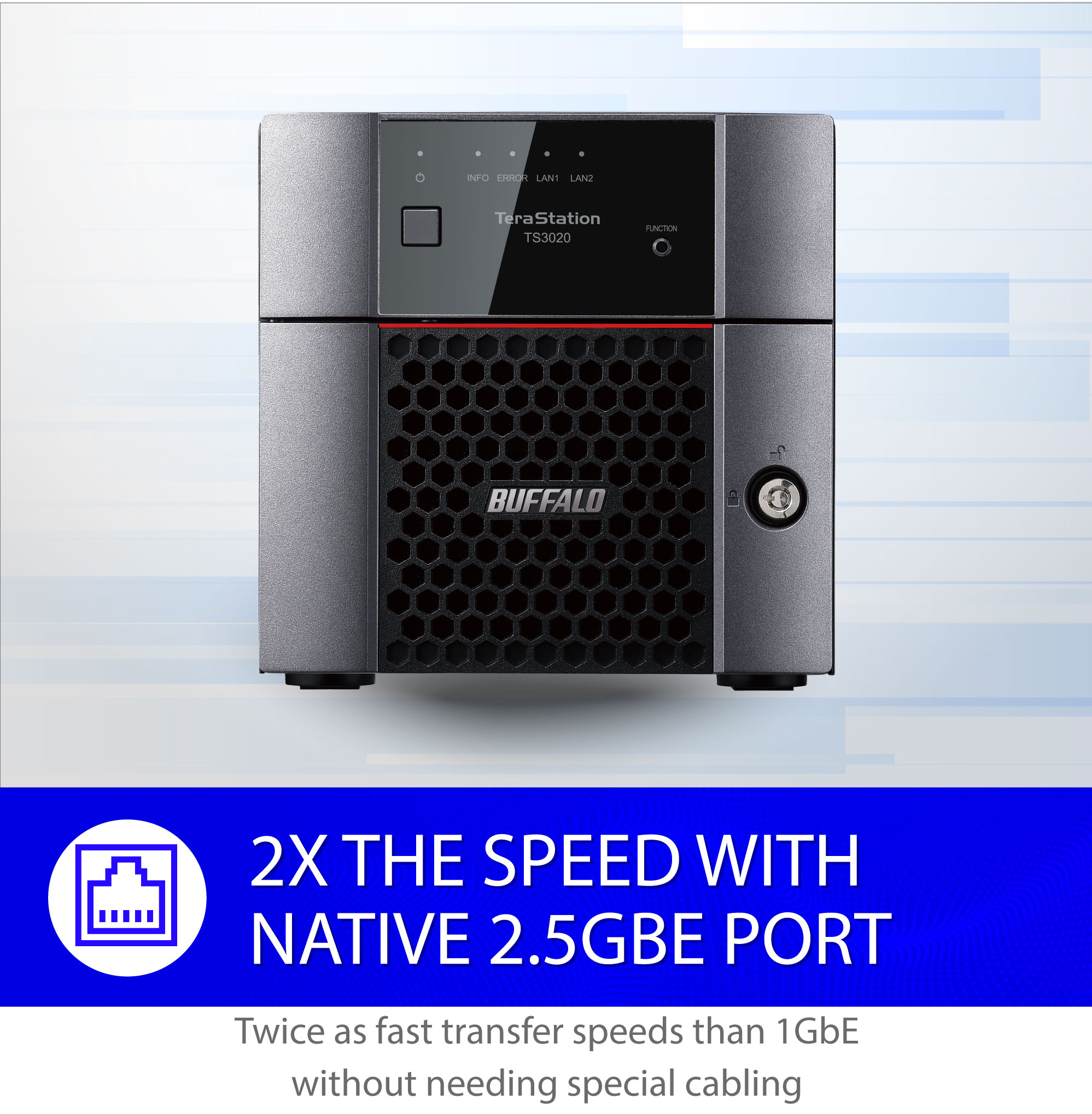

10GbE Compatible: Ready for future data growth


Establishing a 10GbE network not only helps boost productivity, but also can future proof your network as your business expands.


Learn More

With prices coming down on 10GbE hardware, businesses can now reap the benefits of 10GbE networks without pushing their IT budget. 10GbE enables faster data transfers and daily operations than typical 1GbE or 2.5GbE networks. This will help increase office productivity and eliminate network bottlenecks. The TS5010 offers a native 10GbE port, so you can establish a 10GbE storage network and enjoy potentially 10 times faster data access and backup speeds than a 1GbE network.

Easy and Simple: Save your time and money with all inclusive backup


With NAS-grade hard drives included, Buffalo’s Terastation 5010 Network Attached Storage is a one stop, all-inclusive data storage and backup solution to meet your storage needs, allowing you to set up a centralized storage and backup location on your network.



We make it easy for you, and this is the reason why our customers love Buffalo’s acclaimed NAS.



  • The TS5010 comes with native file and user management features for streamlined access and operation: Active Directory support, Remote Management Service, Advanced NTFS Permissions, rsync Integration.

  • Pre-tested NAS grade hard drives included with RAID pre-configured for out-of-the-box redundancy.

  • Effortlessly back up to and from other local servers or rsync-based NAS devices as well as cloud storage.

  • 4 & 8-bay NAS models offer partially-populated models to fulfill your immediate data needs while keeping initial costs low.

Click to check price

Reliable Quality: Designed for 24/7 operation


Your data is secure with our TeraStation NAS that are designed for reliable, 24/7 operation.Buffalo terastation business grade components duplex firmware hdd nand inner power unit metal chassis high performance part nas network atached storage  grade hard drives



- Peace of mind included with Industry # 1 support



The TeraStation 5010  Network Attached Storage Series products are built in Japan, where each included NAS-grade hard drive undergoes comprehensive testing to ensure quality and reliability. The Network Attached Storage hardware is built with enterprise-grade components, including a Quad Core CPU and server-class ECC memory, to provide ideal performance in your daily operations.



The TeraStation 5010 NAS comes with a free 3-year warranty (can be extended to 5 years) and 24/7 North America-based Support. Buffalo also offers optional Next Business Day/Keep Your Drive warranty options. If problems arise, just one call to our help desk and we will work around the clock to resolve your issue.



Our NAS devices are fully TAA compliant.



 - Purpose build & optimized for data storage



All TeraStation units run a closed system for enhanced data security, and are optimized for data storage, file sharing, and versatile backups. The NAS provides optimal 24/7 performance with 100+ simultaneous client PC access.
diagram of reliable NAS Solution for SMB small to medium businesses uo to 100 users with full access read compare deleted continuied for 24 hours



With Active Directory support and advanced NTFS permissions that let you control file permissions at the subfolder level, you can set up folders and user access as you see fit so you can manage your data with ease on the NAS.

Backup Options to Protect Your Data


TeraStation 5010 is reliable and affordable backup target with multiple uses for your data protection needs. Click below to learn more about each use case.



Hybrid Cloud Backup (3rd Party Cloud Backup) Amazon S3, Dropbox, Microsoft Azure and OneDrive



Private Cloud Backup (Data Replication)



Storage Virtualization (iSCSI backup) - See specs tab for VMware supported releases



- NovaStor backup (The best single-server and PC backup software for servers & workstations)



- Rsync Integration



- Replication password reminder. More details here.

File Server: Centralize and share your digital assets


TeraStation offers the storage solution for increasing needs for easy data management for multiple user file share at a fast speed



Advanced NTFS Permissions (Windows ACL)
File permissions can be controlled at the subfolder file level from Windows Explorer, making it possible to create new shares with unique permissions on demand from active directory.



Click here to check price

Buffalo's Data Recovery Service


This product qualifies for Buffalo's data recovery service for simple logical data issues.

To receive this service, the device must be registered within its original warranty terms.

hand with latex gloves and a stethoscope checking on a technology hard drive

button to learn more about buffalo americas data recovery servicebutton to register buffalo americas products

Thank You for Your Support


Reliable & easy to use products with personal pre and post-sales support. These are the fundamentals which have helped us win CRN’s ARC award for the 5th year in a row.

Buffalo's Remote Management Services


Save time and resources by accessing these devices from a single console with Buffalo’s free Remote Management Service.

Specifications

Models



TS5210DN

TS5410DN

TS5810DN

Part Numbers                   

TS5210DN0402
TS5210DN0802
         

TS5410DN0804
TS5410DN1604
TS5410DN2404
TS5410DN3204
TS5410DN0402
TS5410DN0802
TS5410DN1602
       

TS5810DN1604
TS5810DN3204
TS5810DN3208
TS5810DN6408
Form Factor Desktop Desktop Desktop
Country of Origin Japan

Internal Hard Drives

Number of Drive Bays 2 4 8
Number of Included Drives                    2 2 or 4 4 or 8
Capacity Range 4, 8 TB 4, 8, 16, 24, 32 TB 16, 32 or 64 TB
Drive Interface SATA 6 Gbps SATA 6 Gbps SATA 6 Gbps
Supported RAID   0/1/JBOD (Individual Disks)     0/1/5/6/10/JBOD (Individual Disks)

0/1/5/6/10/JBOD (Individual Disks)

USB Interface

Standards Compliance USB 3.0 USB 3.0 USB 3.0
Connector Type A type A type A type
Number of Ports 2x USB 3.0 2x USB 3.0 3x USB 3.0
Data Transfer Rates 5 Gbps 5 Gbps 5 Gbps

Performance

CPU                 Annapurna Labs® Alpine Processor
AL314 (1.7 GHz Quad-Core)
Annapurna Labs® Alpine Processor
AL314 (1.7 GHz Quad-Core)
Annapurna Labs® Alpine Processor
AL314 (1.7 GHz Quad-Core)
Memory 4 GB DDR3 with ECC 4 GB DDR3 with ECC

4 GB DDR3 with ECC

Environmental & Power

Power Consumption                   

Max 85W

Data Transfer 45W

Idling 32W

Max 85W

Data Transfer 56W

Idling 45W

Max 150W

Data Transfer 108W

Idling 87W

Power Supply Internal AC 100-240V Universal 50/60Hz Internal AC 100-240V Universal 50/60Hz Internal AC 100-240V Universal 50/60Hz
Operating Temperature 32˚ - 104˚F (0˚ - 40˚C) 32˚ - 104˚F (0˚ - 40˚C) 32˚ - 104˚F (0˚ - 40˚C)
Operating Humidity 10 - 85% non-condensing 10 - 85% non-condensing 10 - 85% non-condensing

Shipping

Product Dimensions
(L x W x H)                 
9.06 x 6.69 x 6.69 in 9.06 x 6.69 x 8.46 in 11.81 x 8.46 x 9.06 in
Product Weight 10.58 lbs 15.43 lbs 20.72 - 27.55 lbs
Package Dimensions (L x W x H) 14.09 x 12.24 x 12.60 in 14.06 x 12.17 x 14.29 in 216.54 x 13.78 x 13.78 in
Package Weight 13 lbs 19.62 lbs 25.13 - 31.96 lbs

LAN Interface

Standards Compliance  IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 1 (10GBASE-T)*, 2 (1000BASE-T)
*TS51210RH includes an additional 10GBASE-T port
Data Transfer Rates 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP
Connector Type RJ-45

Other

VMware Compatibility iSCSI & NFS
VMware iSCSI & NAS Supported Releases

7.0 U1, 6.5 U3, 7.0, 6.7 U3, 6.7 U2, 6.7 U1, 6.7, 6.5 U2, 6.5 U1, 6.5, 6.0 U3, 6.0 U2, 6.0 U1, 6.0

Client OS Support 

Windows® 10, Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2016, Windows Server® 2012, Windows Server® 2012R2, Windows Server® 2008,
Windows Server® 2008R2, Mac® OS® X 10.9 or later

Compatible Hard Drives

OP-HD2.0N, OP-HD4.0N, OP-HD6.0N, OP-HD8.0N

Additional Power Supply OP-PU-10R2UWR (TS51210RH only)
Optional Warranties 3YNBD20 - 3yr Next Business Day, 3YNBD10 - 3yr Next Business Day, 3YKYD40 - 3yr Keep Your Drive, 3YKYD30 - 3yr Keep Your Drive, 3YKYD20 - 3yr Keep Your Drive, 3YKYD10 - 3yr Keep Your Drive, 5YNBD40 - 5yr Next Business Day, 5YNBD30 - 5yr Next Business Day, 5YNBD20 - 5yr Next Business Day, 5YNBD10 - 5yr Next Business Day, 5YKYD40 - 5yr Keep Your Drive, 5YKYD30 - 5yr Keep Your Drive, 5YKYD20 - 5yr Keep Your Drive, 5YKYD10 - 5yr Keep Your Drive
Included Software NASNavigator2, NovaBACKUP® Buffalo Edition (one server and ten workstation licenses)
Box Contents TeraStation™, AC Cable, Front Panel Key, and Warranty Statement

Resources

Value of Hard Drives Included

Why Buffalo NAS

TeraStation to Amazon S3 Cloud Integration

TS_to_3rd Party Cloud Support

Perfect case to use TS5010 series

TS5010_Solution_Scenario.pdf

Compatible Non Buffalo Drives for TS51210

compatible_non_buffalo_drives.pdf

Perfect Solution Scenario for TS51210

TS51210_Solution_Scenario.pdf

Compatible UPS

UPS compatibility list for TeraStation x10 series

Check RAID Configurations

Downloads

Firmware

    File Size Post Date Version OS Support Notes
2026-02-12 6.08 Windows Firmware updater for TS3010, TS3020, and TS5010 series TeraStations. SHA-256 Hash: FC76DFC9C9FD741801DEEC6414FD808DDD972C8DB5F49ADF9EF80C378B41434C NOTE: If the firmware version at the time of update is Ver.5.80 or earlier, a message regarding iSCSI volumes may be displayed when updating. - If it is connected to an iSCSI volume, disconnect it using the iSCSI initiator before updating the firmware. - If the model is not connected to an iSCSI volume or does not support the iSCSI function, please continue updating.
2026-02-12 6.08 Mac Firmware updater for TS3010, TS3020, and TS5010 series TeraStations. SHA-256 Hash: E823C19E6FCDB9BD6BE37A8DE51FC7F0B37989864836B4C62ADCC19886453E1F NOTE: If the firmware version at the time of update is Ver.5.80 or earlier, a message regarding iSCSI volumes may be displayed when updating. - If it is connected to an iSCSI volume, disconnect it using the iSCSI initiator before updating the firmware. - If the model is not connected to an iSCSI volume or does not support the iSCSI function, please continue updating.

Documentation

    File Size Post Date Version OS Support Notes
2022-03-31 For certificates and compliancy lists including volatility and RoHS, please email us at sales@buffaloamericas.com.
2017-04-11 Manuals and Quick Setup Guide for TeraStation 5010 series
2026-02-12 6.08 Windows Readme for firmware updater for TS3010, TS3020, and TS5010 series TeraStations.
2026-02-12 6.08 Mac Readme for firmware update for TS3010, TS3020, and TS5010 series TeraStations.
2025-10-09 3.1.2 Windows Readme for NAS Navigator for Windows
2019-07-18 2.99 Windows Lisez-moi pour NAS Navigator pour Windows (français)
2019-07-18 2.99 Mac Readme for NAS Navigator for Mac NOTE: For users running MacOS 10.13 or later, download and install the latest version of NAS Navigator2 from Mac App Store.
2019-07-18 2.99 Mac Lisez-moi pour NAS Navigator pour Mac (français) REMARQUE: pour les utilisateurs d'ordinateurs sous MacOS 10.13 ou ultérieur, téléchargez et installez la dernière version de NAS Navigator2 à partir du Mac App Store.
2019-11-11 1.02 Windows Readme for B-Sync for Windows
2019-03-06 UPS compatibility list for TeraStation x10 and WSS series
2016-05-10 1.00 Windows Readme for Boot Authentication Tool

Utilities

    File Size Post Date Version OS Support Notes
2020-07-27 3.0.4 Windows NAS Navigator for Windows SHA256 hash EE41EEC02188298BEE5DBBA786BA5239638DA19B6FCA29339C17ADCDA6531DF2
2019-07-18 2.99 Mac NAS Navigator for Mac NOTE: For users running MacOS 10.13 or later, download and install the latest version of NAS Navigator2 from Mac App Store. SHA256 Hash: A234CBCBF1B185F8594848A809C629E8A3B67683B86D4A591E2A2E106D38CADA
2024-07-12 202003090000z.1201 Private MIB definition file for TS3000, TS5000, TS7000 (TS-2RZ), TS3010, TS3020, TS5010, TS5020, and TS7010 series TeraStations and 700 Series LinkStation
2017-01-04 Link to registration page for all Buffalo products including switches and extended warranties. Also includes setting to provide license information for Novastor NovaBackup software if eligible.
2018-06-01 Windows Download page for the Buffalo Network QuickView software.
2019-11-11 1.02 Windows B-Sync is an application that creates shared links for files stored on the TeraStation. Using the "B-Sync" software will allow you to share files on the TeraStation with users who are not on the same network as the TeraStation.
2016-05-10 1.00 Windows Boot Authentication Tool for supported TeraStations. This application is used to authorize and manage any TeraStation configured for boot authentication. When the application is installed to your Windows server it will become an authentication server to authenticate the TeraStation during boot.
