TeraStation™ 1200 Series - Desktop

Buffalo’s TeraStation 1200 Desktop Series is a compact, budget friendly two-drive network storage solution ideal for home offices and professional users requiring a reliable RAID-based network storage, providing dependable performance during file transfers and everyday NAS functions.



This product is currently while supplies last. The LinkStation SoHo devices are the direct replacement.


Click to check price Click to contact sales



Overview

Highlights

  • Pre-tested Hard drives included with RAID pre-configured

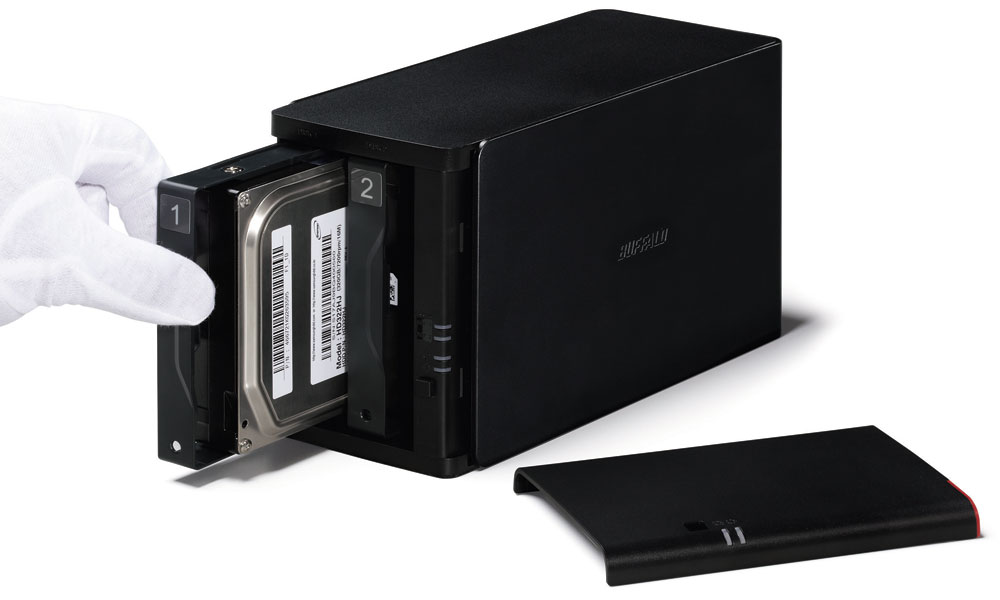

  • NAS solution / Hot Swap Hard Drive feature
  • Private Cloud / Active Directory Supported
  • Personal Cloud for access to your files anywhere with internet access
  • Business-level sever/PC backup NovaBACKUP® software bundled
  • Optimized performance for SOHO 1 - 10 concurrent users
  • 3 years Standard Warranty

Easy and Simple: Save your time and money with all inclusive backup

With hard drives included, the TeraStation is a one-stop, all-inclusive backup and recovery storage solution.

We make it easy for you, and this is a key factor in choosing Buffalo NAS.



  • Comes with features to make it easy for you to manage your NAS and its users
  • Pre-tested hard drives included with pre-configured RAID
  • TeraStation data can easily back up to external storage (DriveStation)

Backup and Share Your Data

TeraStation 1200 is an affordable entry-level backup target to protect your data.



All Buffalo TeraStations comes with NovaStor NovaBACKUP licenses included.  The best single-server and PC backup software for servers and workstations.



TeraStation also offers the storage solution for increasing needs for easy data management for multiple user file share at a fast speed. With Web Access feature, you can access your data from anywhere

Specifications

Models

Part numbers TS1200D0202
TS1200D0402
TS1200D0802
TS1400D0404
TS1400D0804
TS1400D1204
TS1400D1604
Form factor Desktop: TeraStation™ 1200D, TeraStation™ 1400D

Performance

Processor 1.2 GHz Dual-Issue ARM
Memory 512 MB DDR3

Internal Hard Drives

Number of drive bays 2: TeraStation™ 1200D
4: TeraStation™ 1400D
Capacity

2TB: TS1200D0202,
4TB: TS1200D0402 (2 x 2TB), TS1400D0404 (1 x 4TB)

8TB: TS1200D0802 (2 x 4TB), TS1400D0804 (4 x 2TB)
12TB: TS1400D1204 (4 x 3TB)
16TB: TS1400D1604 (4 x 4TB)
Drive interface SATA 3 Gbps
Supported RAID levels 0/1/JBOD: TeraStation™ 1200D
0/1/5/6/10/JBOD: TeraStation™ 1400D, TeraStation™ 1400R

LAN Interface

Standards compliance IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), AUTO-MDIX
Data transfer rates 10/100/1000 Mbps (auto sensing)
Number of ports 1
Connector type RJ-45
Supported protocols TCP/IP
Network file services CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP, NFS

USB Interface

Standards compliance USB 2.0: TeraStation™ 1200D
USB 3.0, USB 2.0: TeraStation™ 1400D
Data transfer rates 5 Gbps* (USB 3.0)
480 Mbps* (USB 2.0)
Number of ports 1 x USB 2.0: TeraStation™ 1200D
2 x USB 3.0, 1 x USB 2.0: TeraStation™ 1400D

* 480 Mbps and 5 Gbps are the maximum transfer rates derived from the specifications of the Universal Serial Bus 2.0 and 3.0. Actual transfer rates will vary depending upon environmental factors. Data rates, features and performance may vary based on the configuration of your system and other factors. - See more at: http://buffalo.parscalecloud.com/products/terastation-1000-series#sthash.pWuWK3nD.dpuf

Environmental and Power

Power consumption 48W Max: TeraStation™ 1200D
150W Max: TeraStation™ 1400D
Power supply External AC 100-240V, Universal 50/60Hz: TeraStation™ 1200D, TeraStation™ 1400D
Internal AC 100-240V, Universal 50/60Hz: TeraStation™ 1400R
Operating temperature 41° - 95°F (5° - 35°C)
Operating humidity 20 - 80% non-condensing

Other

Dimensions (L x W x H) 8.03 x 3.43 x 5 in: TeraStation™ 1200D
8.94 x 6.97 x 5.02 in: TeraStation™ 1400D
Weight 5.29 lbs: TeraStation™ 1200D
11.9 lbs: TeraStation™ 1400D
Compatible hard drives (TeraStation™ 1200D & 1400D) OP-HD1.0BST-3Y
OP-HD2.0BST-3Y
OP-HD3.0BST-3Y
OP-HD4.0BST-3Y
Compatible hard drives (TeraStation™ 1400R) OP-HD1.0S-3Y
OP-HD2.0S-3Y
OP-HD3.0S-3Y
OP-HD4.0S-3Y
Client OS support Windows® 10
Windows® 8.1 (32-bit/64-bit)
Windows® 8 (32-bit/64-bit)
Windows® 7 (32-bit/64-bit)
Windows Vista® (32-bit/64-bit)
Windows Server® 2012 R2
Windows Server® 2012
Windows Server® 2008 R2
Windows Server® 2008
Windows Server® 2003
Mac OS® X up to 10.10*

*Some included optional utilities are not supported

Included software TeraNavigator
NASNavigator2
TurboPC EX*
NovaBACKUP®
WebManual
Adobe® Reader®

* Only included with TeraStation™ 1200

Box contents TeraStation™
Utility CD (TeraNavigator, NASNavigator2, NovaBACKUP®, Adobe® Reader®)
Quick setup guide
Ethernet cable
AC adapter
AC cable
Warranty statement
  TS1200D TS1400D
Part Number

TS1200D0202
TS1200D0402
TS1200D0802

 TS1400D0404
TS1400D0804
TS1400D1204
TS1400D1604
Form Factor Desktop Desktop

Resources

Downloads

Firmware

    File Size Post Date Version OS Support Notes
Download 2022-01-24 1.68 Windows TS1000 Firmware updater for Windows. SHA 256 hash - F9EE3C23C1EE9FB1F4780597E6FE7C4448A92BA456B5B991613E367207DF00D8
Download 2022-01-24 1.68 Mac TS1000 Firmware updater for Mac. SHA 256 hash - FB94638E45A70157839763EB5C8A0E759505F99410438B72BA6547A6B84665E6

Documentation

    File Size Post Date Version OS Support Notes
Open Link 2016-04-28 User's Manual and Quick Setup Guides for TS1200 TeraStation
Open Link 2016-04-28 User's Manual and Quick Setup Guides for TS1400D
Open Link 2016-04-28 User's Manual and Quick Setup Guides for TS1400R
Download 2022-01-24 1.68 Windows Readme for TS1000 firmware updater for Windows.
Download 2022-01-24 1.68 Mac Readme for TS1000 firmware updater for Mac.
Download 2025-10-09 3.1.2 Windows Readme for NAS Navigator for Windows
Download 2019-07-18 2.99 Windows Lisez-moi pour NAS Navigator pour Windows (français)
Download 2019-07-18 2.99 Mac Readme for NAS Navigator for Mac NOTE: For users running MacOS 10.13 or later, download and install the latest version of NAS Navigator2 from Mac App Store.
Download 2019-07-18 2.99 Mac Lisez-moi pour NAS Navigator pour Mac (français) REMARQUE: pour les utilisateurs d'ordinateurs sous MacOS 10.13 ou ultérieur, téléchargez et installez la dernière version de NAS Navigator2 à partir du Mac App Store.
Download 2016-04-25 1.01 Windows Readme for TeraNavigator for Windows
Download 2016-04-25 1.10 Mac Readme for TeraNavigator for Mac
Download 1.73 KB 2016-04-25 1.13 Windows Readme for the File-sharing Security Level Changing Tool.

Utilities

    File Size Post Date Version OS Support Notes
Download 2020-07-27 3.0.4 Windows NAS Navigator for Windows SHA256 hash EE41EEC02188298BEE5DBBA786BA5239638DA19B6FCA29339C17ADCDA6531DF2
Download 2019-07-18 2.99 Mac NAS Navigator for Mac NOTE: For users running MacOS 10.13 or later, download and install the latest version of NAS Navigator2 from Mac App Store. SHA256 Hash: A234CBCBF1B185F8594848A809C629E8A3B67683B86D4A591E2A2E106D38CADA
Serial Number Lookup 2016-05-05 1.01 Windows TeraNavigator for Windows
Serial Number Lookup 2016-05-05 1.10 Mac TeraNavigator for Mac
Download 493.18 KB 2016-04-25 1.13 Windows Tool for Changing the File-sharing Security Level. Before delegating authority to an external SMB server on your LinkStation or TeraStation, use this utility to change the file sharing security level of your Windows Vista, Windows 7, Windows 8, Windows Server 2003, or Windows Server 2008 computer.
Open Link 2019-08-05 Windows How to obtain NovaBackup software

Variations


TS1200D0202

TeraStation™ 1200D 2TB

  • - Desktop
  • - 2
  • - 2
TS1200D0402

TeraStation™ 1200D 4TB

  • - Desktop
  • - 2
  • - 4
TS1200D0802

TeraStation™ 1200D 8TB

  • - Desktop
  • - 2
  • - 8
