KB ID: 5145

Product: TS5010 Series | TS6000 Series | TS5020 Series | TS71210 Series | TS3010 Series | TS3020 Series | TS-Essentials Series 2022 | TS3030 Series | TS Essentials Series 2025

Configuring a Buffalo TeraStation 5010/3020/3010/6000/5020/3030/7010 to Sync with a UPS


We highly recommend to connect a UPS (Uninterruptible Power Supply) to the Buffalo NAS.
UPS is a backup power device that allows the Buffalo NAS to continue operating for a short time if power failure occurs.
Sudden power failure might cause NAS to have data corruption/data loss, or even hardware damage.
When UPS Sync with NAS shutdown feature is configured on Buffalo NAS, it helps prevent data loss by giving the Buffalo NAS enough time to safely shutdown when power outage occurs.

Check supported UPS devices HERE. Make sure your UPS device is capable of USB communication. Make sure you UPS is powered on and connected to the USB port on the back of the TeraStation.


  1. Log in to WEBUI Settings for the TeraStation.

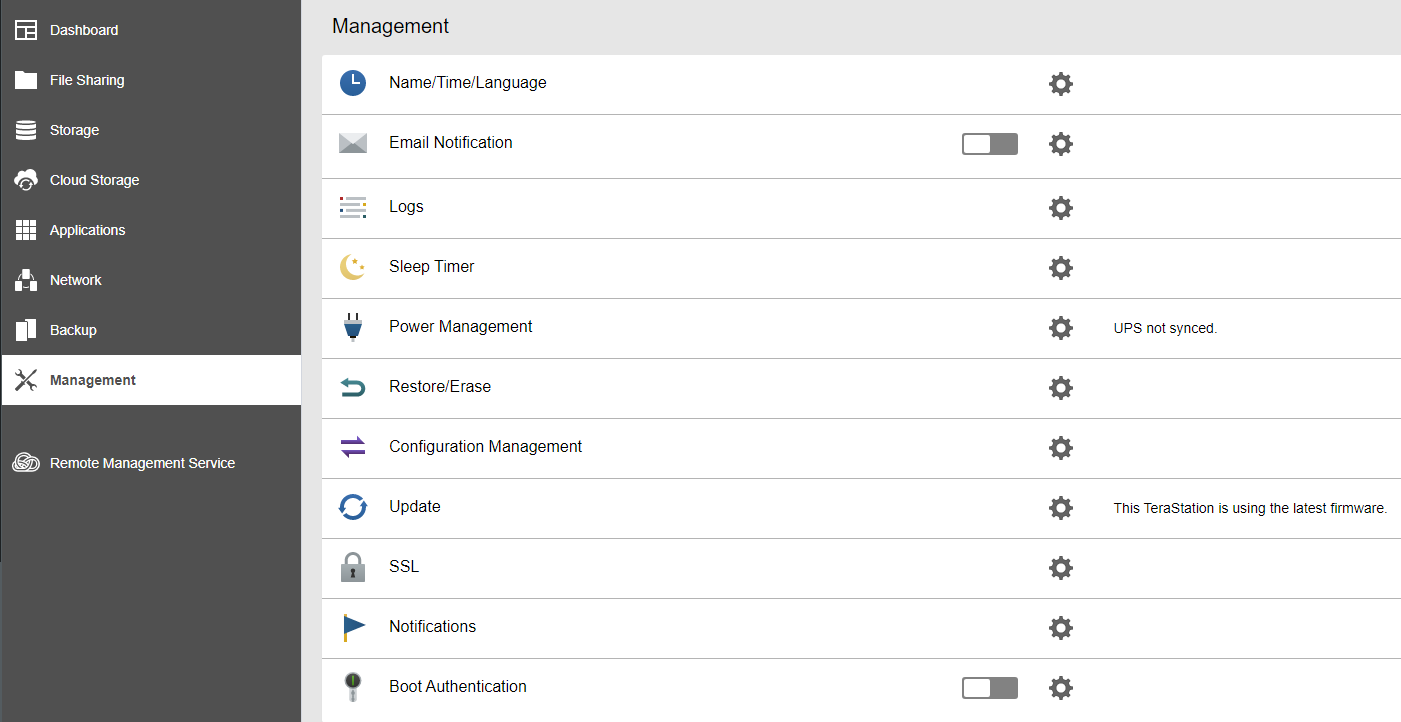

  2. Click on the "Management" tab.
  3. Click the widget to the right of "Power Management".

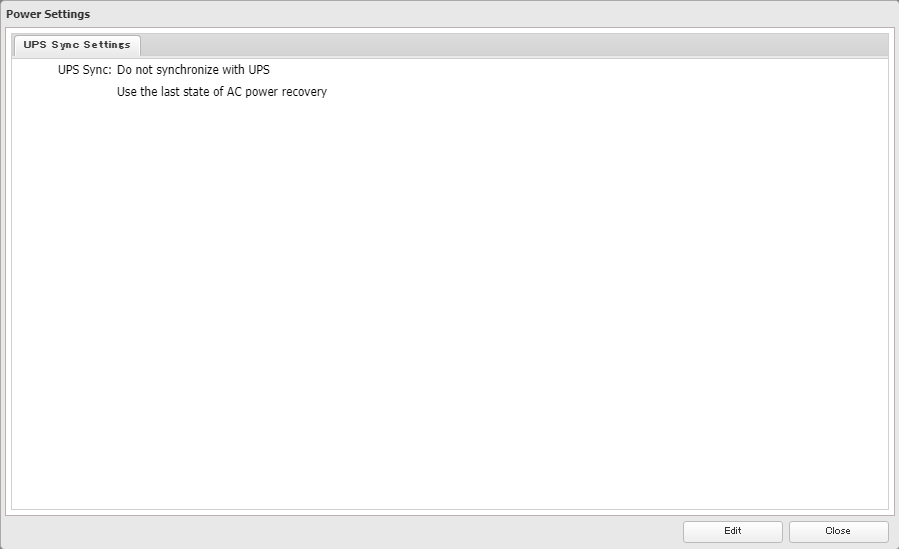

  4. Click Edit.

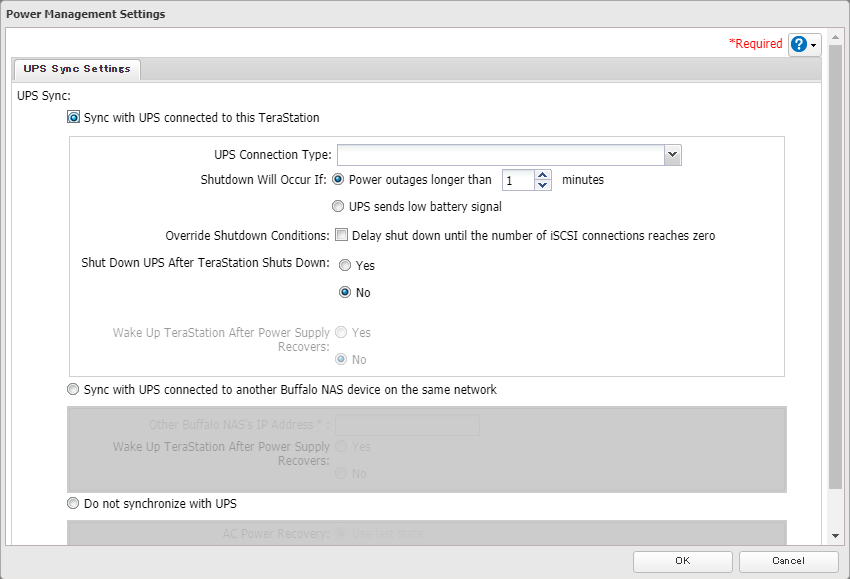

  5. Click the radio button to sync with a UPS connected to the TeraStation. Set options as desired and click OK.



search keywords: ups 5410 51210 6000 5810 3210 3410 3420
