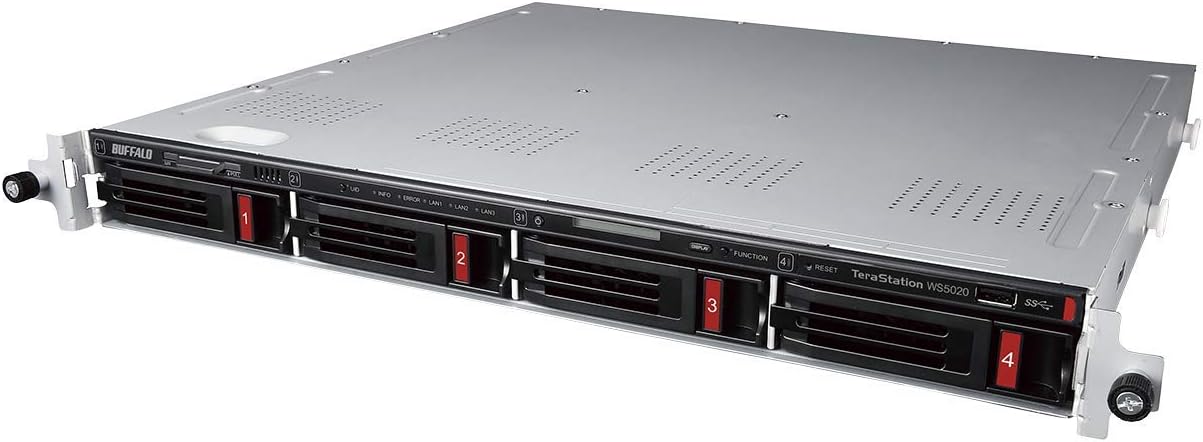

TeraStation™ WS5020 IoT 2025 - Rackmount

Windows Server-based NAS storage that are reliable and versatile - Hard Drives Included





TeraStation WS5020 Windows Server IoT Network Attached Storage devices are purpose-built as efficient data storage and backup solutions for small businesses. These devices run on the Windows Server IoT 2025 for Storage operating system and integrate seamlessly into Windows-based environments as well as with various Microsoft services such as Azure and OneDrive.



The TeraStation NAS offers flexibility to be used as you see fit, such as acting as a multi-purpose file server, a central backup hub for all your files (including backing up to and from cloud services), being set up as a NVR server for security cameras, or serving as a subscription-free backup and disaster recovery (BDR) appliance.



Click here to contact a Buffalo specialist



Click here for Desktop Lineup


Click to check price Click to contact sales
WSIoT_2025_NAS_Datasheet_Updated.pdf

Windows Server Operating System

Native Windows Server IoT 2025 for Storage Workgroup edition that is optimized for SMB storage.

Day One Ready

Pre-tested NAS-grade hard drives included with RAID pre-configured for day one data protection.

No CALs Required

With Windows Server IoT there are no Client-Access Licenses required (supports a maximum of 50 concurrent sessions).

Cloud Integration

Sync with Microsoft-compatible cloud services such as Azure and OneDrive for hybrid cloud setups.

Windows Data Management and Security

Cost-effective small business NAS with Windows Server enhanced data management and security features.

Professional Backup Software

Includes NovaBACKUP software license(s) for versatile, professional-level server and PC backups

Quality Engineering, Made in Japan

Precision-crafted with high-quality components and fully TAA-compliant.

Worry-Free Support & Warranty

Extensive optional warranty upgrades (including hard drive coverage) available, plus 24/7 US-based live phone support and free data recovery services.

Overview

Deployment is an event, not a project

Buffalo NAS systems come with hard drives pre-installed and RAID already configured to save you time, effort, and setup hassle. With guaranteed interoperability, you get Day One data protection and rapid deployment.



Every hard drive goes through a rigorous 5-step testing process, from strict sourcing standards to final quality checks to ensure you get maximum reliability and performance out of the box.



Learn more about Buffalo hard drives.

Low Cost Deployment

Whether you are replacing an aging NAS or installing a new on-site storage or backup server, you can easily implement the Windows Server IoT 2025 NAS without extra cost or hassle. In addition, the WS IoT 2025 TeraStation does not require any Client Access Licenses (CALs). You can have up to 50 users access the NAS without needing to pay additional costs to further help device integration.

Windows Server Optimized for Storage

Windows Server IoT 2025 for Storage Workgroup edition is a specialized version of Windows Server IoT with dedicated file server capabilities and streamlined for small storage solutions. You can integrate any Windows product, service, or platform you are already using as needed, as Windows Server IoT 2025 offers enhanced app compatibility from previous editions.



The NAS integrates seamlessly into Windows environments, with the familiar Windows Server interface minimizing training needs. It also offers the latest Windows Server features including data deduplication and Active Directory with enhanced security and greater scalability.

Enhanced Data Security

Windows Server IoT 2025 enhances security with SMB over QUIC for encrypted remote access, Active Directory with stronger encryption, automated password management through Delegate Managed Service Accounts, mandatory LDAP encryption, and virtualization-based security to protect sensitive keys and workloads.

Peace of Mind with Buffalo

WS5020 comes with a 3-year product warranty that covers all hardware components, including hard drives, along with an optional 5-year extension available for all registered devices.



This device also qualifies for Buffalo's free Simple Logical Data Recovery service as well as 24/7, US-based live phone support.

Specifications

Models

Model Number

WS5420RN
Part Numbers                   

WS5420RN16W5
WS5420RN32W5
WS5420RN48W5
Operating System Windows Server IoT 2025 for Storage Workgroup Edition
Country of Origin Japan
TAA Compliant Yes

Internal Hard Drives

Number of Drive Bays 4
Number of Included Drives                    4
Capacity Range 16, 32, 48 TB
Drive Interface SATA 6 Gbps
Supported RAID   0/1/5/JBOD (Individual Disks) (Default 5)

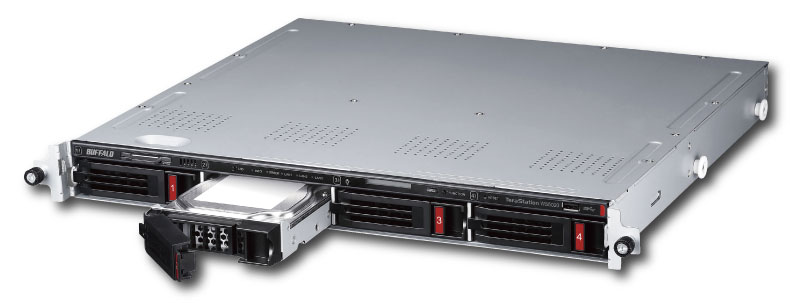

Hot Spares Yes, with hot swapping supported

USB Interface

Standards Compliance USB 3.0
Connector Type Type A
Number of Ports 3x USB 3.2 (Gen1)
Data Transfer Rates 5 Gbps

Performance

CPU                 Intel Atom C3338
Memory 8GB DDR4 with ECC

Environmental & Power

Power Consumption                   

Max 100W

Data Transfer 61.7W

Idling 58.7W

Standby 4.9W
Power Supply Internal AC 100-240V Universal 50/60Hz
Operating Temperature 32˚ - 104˚F (0˚ - 40˚C)
Operating Humidity 10 - 85% non-condensing

Shipping

Product Dimensions (L x W x H)                  16.9 x 16.9 x 1.7 in
Product Weight 19.6 lbs
Package Dimensions (L x W x H) 23.0 x 21.3 x 7.9 in
Package Weight 28.7 lbs
Warranty 3 Years

LAN Interface

Standards Compliance  IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3i (10BASE-T)
Number of Ports 1 (10GBASE-T), 2 (1000BASE-T)
Data Transfer Rates 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP
Connector Type RJ-45
<>Product Features
Port Trunking  Yes
Replication  Yes
UPS  Yes (USB/Network)
Active Directory  Yes
Cloud Service Integration  Yes
SNMP  Yes
Remote Monitoring Services  Yes
iSCSI  Yes
<>Client OS Support
Client OS Support 

Windows® 11 (32-bit/64-bit), Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit)
Windows Server® 2019, Windows Server® 2016, Windows Server® 2012R2, Windows Server® 2012
Mac® OS® 10.12 or later

Accessories

Compatible Hard Drives OP-HDN Series (OP-HD4.0N, OP-HD8.0N, OP-HD10.0N)
Warranty Services

Next Business Day (3YNBD20, 5YNBD30)

Keep Your Drive (3YKYD30, 5YKYD30)

BDR Notice

Running Instances of the Server Software
You may run, at any one time, one instance of the server software in one physical or virtual operating system environment on the licensed server.

Running Instances of Additional Software
You may run or otherwise use any number of instances of additional software listed on the website specified below in physical or virtual operating system environments on any number of devices. You may use additional software only with the server software. For a list of additional software, visit (aka.ms/additionalsoftware).
<>Box Contents
Included Software NASNavigator2, NovaBACKUP® Buffalo Edition (one server and ten workstation licenses, Register here for download)
Box Contents

TeraStation WS5420RN, AC Cable, 6a Ethernet Cable, Warranty Statement, Quick Setup Guide, Setup Media (SD card), Rail Kit with Mounting Brackets and Screws
Additional For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact sales@buffaloamericas.com.

Resources

Why Buffalo

Why Buffalo

TeraStation to Amazon S3 Cloud Integration

TS_to_3rd Party Cloud Support

Perfect case to use TS5010 series

TS5010_Solution_Scenario.pdf

Compatible Non Buffalo Drives for TS51210

compatible_non_buffalo_drives.pdf

Perfect Solution Scenario for TS51210

TS51210_Solution_Scenario.pdf

Compatible UPS

UPS compatibility list for TeraStation WSS series

EULA Windows Server IoT 2025

EULA Windows Server IoT 2025 Document

TAA and FIPS Compliance Information

Buffalo Compliance Information

Value of Hard Drives Included

Buffalo Branded Drives
Check RAID Configurations

Downloads

Firmware

    File Size Post Date Version OS Support Notes
Download 2026-04-08 4.36 Firmware update for WS5020N5 series units SHA256: 8BAE811B80A40ADC5FB15B535C1D53CAA286974B210E4903F36F0D1640BF7643

Documentation

    File Size Post Date Version OS Support Notes
Open Link 2022-03-31 For certificates and compliancy lists including volatility and RoHS, please email us at sales@buffaloamericas.com.
Download 2025-10-09 3.1.2 Windows Readme for NAS Navigator for Windows
Download 2019-07-18 2.99 Windows Lisez-moi pour NAS Navigator pour Windows (français)
Download 2019-07-18 2.99 Mac Readme for NAS Navigator for Mac NOTE: For users running MacOS 10.13 or later, download and install the latest version of NAS Navigator2 from Mac App Store.
Download 2019-07-18 2.99 Mac Lisez-moi pour NAS Navigator pour Mac (français) REMARQUE: pour les utilisateurs d'ordinateurs sous MacOS 10.13 ou ultérieur, téléchargez et installez la dernière version de NAS Navigator2 à partir du Mac App Store.
Download 2019-03-06 UPS compatibility list for TeraStation x10 and WSS series
Download 2020-03-05 1.00 WSS Readme for the Remove Registry utility
Download 2025-03-25 1.02 Windows Readme for Remote Management Service Remote Settings Connection App
Open Link 2025-08-18 Manuals and Quick Setup Guide for WS5020N5
Download 2026-04-08 4.36 Readme for FW update for WS5020N5 series units

Utilities

    File Size Post Date Version OS Support Notes
Download 2025-10-09 3.1.2 Windows NAS Navigator for Windows - Self extracting installer. SHA256 hash f9927bb6c1ee10a9c2be1858cb6db2f24a43c05bb5df3c3c7676ae843808bbcd
Download 2019-07-18 2.99 Mac NAS Navigator for Mac NOTE: For users running MacOS 10.13 or later, download and install the latest version of NAS Navigator2 from Mac App Store. SHA256 Hash: A234CBCBF1B185F8594848A809C629E8A3B67683B86D4A591E2A2E106D38CADA
Open Link 2017-01-04 Link to registration page for all Buffalo products including switches and extended warranties. Also includes setting to provide license information for Novastor NovaBackup software if eligible.
Download 2020-03-05 1.00 WSS This software will resolve the drive error (E30) message that mistakenly appears on Windows Storage Server-installed NAS devices by deleting the registry key.

Variations


  • WS5420RN16W5

    WS5420 16TB - 4 drives included - Windows Server IoT 2025

    • - Rackmount
    • - 4
    • - NAS
    • - 16
  • WS5420RN32W5

    WS5420 32TB - 4 drives included - Windows Server IoT 2025

    • - Rackmount
    • - 4
    • - NAS
    • - 32
  • WS5420RN48W5

    WS5420 48TB - 4 drives included - Windows Server IoT 2025

    • - Rackmount
    • - 4
    • - NAS
    • - 48
